Eibach B12 Sportline Suspension Kit E95-85-021-01-22 – VW Scirocco III (137, 138)

Eibach B12 Sportline suspension kit E95-85-021-01-22 for the Volkswagen Scirocco (137, 138), lowering the car by 35–40 mm at the front and 30 mm at the rear, approved to 1050 kg front and 770 kg rear axle load.

Specifications

• Manufacturer: Eibach
• Product line: B12 Sportline
• Part number: E95-85-021-01-22
• Lowering, front: 35–40 mm
• Lowering, rear: 30 mm
• Permitted axle load, front: 1050 kg
• Permitted axle load, rear: 770 kg
• Spring part numbers: 2 × front axle spring F21-15-007-01-VA, 2 × rear axle spring F21-85-021-01-HA
• Damper part numbers: 2 × front damper 35-108191, 2 × rear damper 24-178006
• Type-approval marking: Export, EXPORT
• Fitting instructions: Entsorgungsanleitung.pdf
• Applications covered: 1 vehicle, 1 fitment row

Performance

B12 Sportline is the complete-set version of the deep Sportline drop: Sportline springs at 35–40 mm at the front and 30 mm at the rear together with dampers valved for those higher rates. This is the combination Eibach specifies for the full Sportline ride height, because standard dampers cannot control the shorter travel and stiffer rates on their own.

Fitment

Fits Volkswagen Scirocco (137, 138), 05/2008–11/2017, FWD — see the full list below. Verify fitment using the vehicle compatibility checker above.

Browse every suspension part we list for this car in the Volkswagen collection. The full Eibach range and what each line is for is set out on our Eibach ranges page.

What's Included

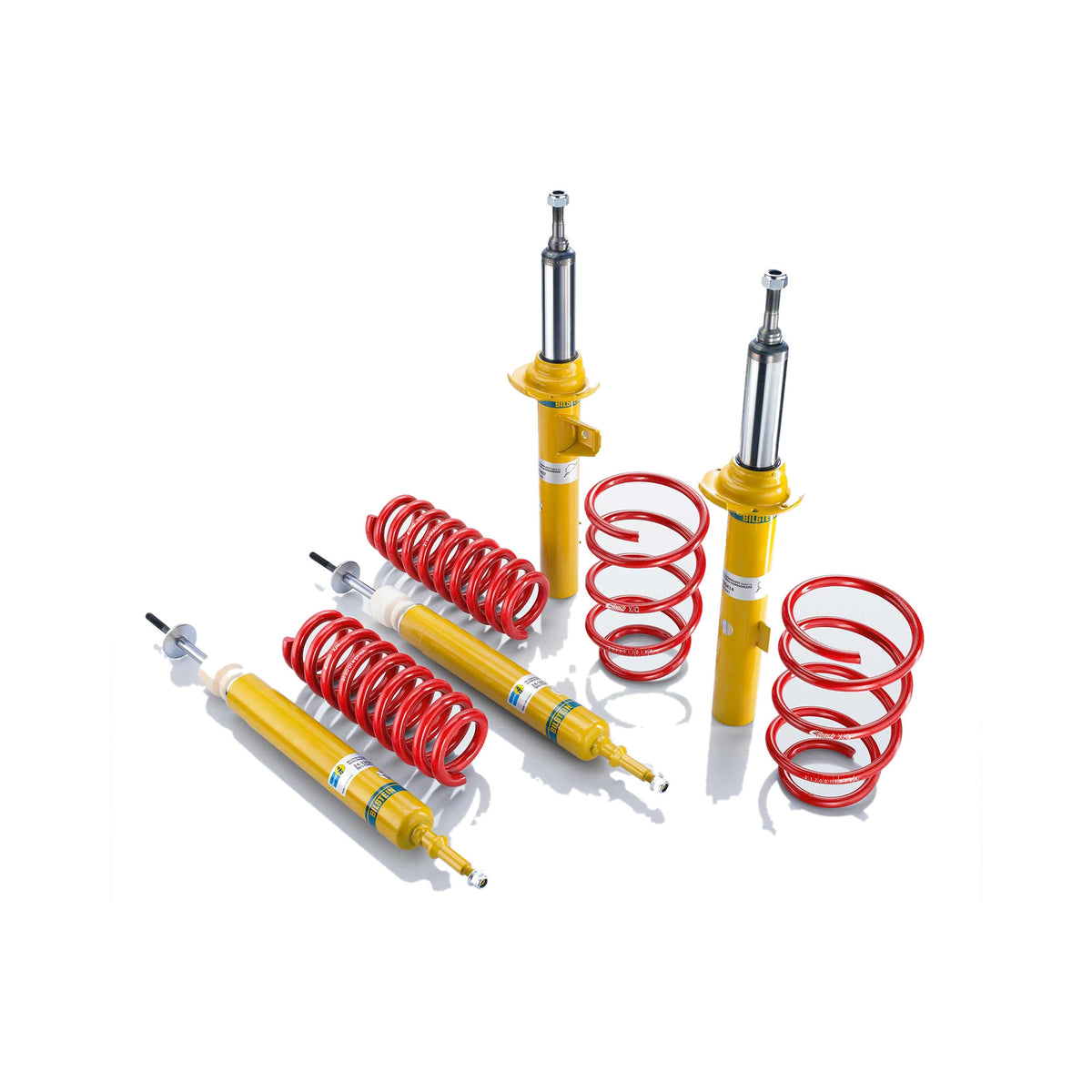

One complete Eibach B12 Sportline for this vehicle — matched springs and dampers for both axles, supplied together so the spring rates and the damping are the pair they were developed as. Springs: 2 × front axle spring F21-15-007-01-VA · 2 × rear axle spring F21-85-021-01-HA. Dampers: 2 × front damper 35-108191 · 2 × rear damper 24-178006. Top mounts, bump stops and fixings are re-used from the vehicle unless the specification table above lists them.

Warranty

Backed by Eibach's manufacturer warranty against defects in materials and workmanship. Cover assumes the set is fitted complete and as supplied, by a workshop with the correct spring tooling. Mixing these parts with springs or dampers from another set puts the load outside what this set was tuned for and is not covered. As an official reseller in the EU, Suspengo also handles your statutory conformity rights on this purchase — contact us first and we deal with the manufacturer.

Notes

• If not separately named, for vehicles with OE-lowered suspension, the dimension of lowering is reduced by the dimension of lowering carried out by manufacturer. If not separately named, vehicles with OE-lifted suspension (e.g. Offroad-Package, Crossover) are excluded from use of our products.
• The specifications indicated in the Components Certificate are for the classification of the item / vehicle. Please check the type Components Certificate number of your car and compare with the Components Certificate. (Letter "K" in your vehicle registration certificate or to find at the type plate of your car!)
• Please verify before fitting by means of the Components Certificate whether the delivered items (please see marking) are approved for your vehicle (please see area of use).You can find the current Components Certificate on www.eibach.de
• In case of non-conformance the items must not be fitted – please refer to your dealer.
• Mounting - we recommend to have our spring system installed by a qualified workshop only, that has skilled personnel and the required special tools available. - If the installation deviates from the workshop manual, Eibach-Eibach instructions are available online.
• Mounting position - you can "read" the mounting position of the springs from the imprint - have them installed just the way you read the imprint.
• Wheel adjustment - after completion of the spring/suspension installation, checking the wheel adjustment is required.
• Shock absorbers - if the standard shock absorbers are not fully operative anymore and their efficiency has worn off considerably, we strongly recommend to replace those by new standard shock absorbers or by sports shock absorbers, if using lowering springs. This already can be necessary from 40.000 kilometers OE-damper-milage.
• The installation of Sport-Shock Absobers is recommended with Sportline springs. As example Bilstein B8
• Here all wheel/tyre-combinations are possible, which are released by the wheel type testing institution. The instructions in the wheel Components Certificate have to be adhered to, except for: OE suspension is required.
• Depending on engine, gearbox/transmission, equipment and vehicle tolerances lowering may differ from the values given. The dimension of lowering is reduced by the dimension of lowering carried out by manufacturer.
• The applicability of our products deals with standard cars. In any case of reconstruction (even with OE-accessory-parts), as the installation of an accessory-brake-system (e.g. ceramic-brakes), sport-suspension, LPG-(liquefied petroleum gas)-system for example, the usage of our products may be excluded. The stated measurements are referring to new standard cars. Measuring points: vertical distance from the middle of the wheel hub to the bottom edge of the mud wing. Generally the stated measurements are nominal values, which can vary depending on every car.
• If your vehicle has serial electronic damper control this will not be available anymore while using the B12- or Pro-Street-S-suspension kit. You will see a trouble code. This can be re-programed by an official garage/dealership. If available for your vehicle, we recommend to use Pro-Tronic to avoid the trouble code.
• Without levelling control.
• Except vehicels with 4WD.
• Only for vehicles with front damper diameter of 55 mm
• Due to the usage of gas pressure technology of the B6 / B8 dampers the dimension of lowering / lifting may vary slightly vehicle-specifically. Functionality of electronic dampers is not applicable . - If available, we recommend to use Pro-Tronic.
• If replacement required: Please contact your dealer. - Please have your car documents, part numbers and sales receipt ready to give detailed information.
• Only Export - nor available in Germany - only without Components Certificate!
